	High accuracy GNSS receiver TR-610 The TR-610 receiver is L1-RTK receiver with a multi-NSS (GPS / Galileo / GLONASS / BeiDou) data processing function. TR-610 receiver allows the customer to obtain high accuracy positioning results at low cost. Web-based user interface makes it easy to change device settings. Provides a variety of input and output interfaces. Performs NTRIP client functions independently without a separate device such as a laptop or smart phone. Depending on user setting, it operates RTK reference station mode, RTK mobile station mode and DGPS mobile station mode. Position accuracy of several centimeters (cm) level can be obtained without reference station equipment.

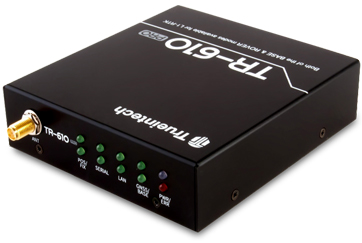

High accuracy GNSS receiver
TR-610
The TR-610 receiver is L1-RTK receiver with a multi-NSS (GPS / Galileo / GLONASS / BeiDou) data processing function. TR-610 receiver allows the customer to obtain high accuracy positioning results at low cost.
Web-based user interface makes it easy to change device settings.
Provides a variety of input and output interfaces.
Performs NTRIP client functions independently without a separate device such as a laptop or smart phone.
Depending on user setting, it operates RTK reference station mode, RTK mobile station mode and DGPS mobile station mode.
Position accuracy of several centimeters (cm) level can be obtained without reference station equipment.

Key Features	Application Field
· GNSS module and integrated communication module terminal · Depending on user setting, it operates in one of RTK reference station, RTK mobile station and DGPS mobile station. · Multi-GNSS (GPS / Galileo / GLONASS / BeiDou) data processing · Independently connect NTRIP / VRS server and receive calibration information without any equipment such as a notebook or smart phone · Web-based and command-based configuration · No need to build calibration information server when using calibration information relay service	· Accurate data construction of road environment · Establishment of facility DB · Survey assistant · Industrial Drone Positioning Module · Natural / man-made structure displacement monitoring · Precision agricultural machinery · Construction equipment

Key Features

Application Field

· GNSS module and integrated communication module terminal
· Depending on user setting, it operates in one of RTK reference station,
RTK mobile station and DGPS mobile station.
· Multi-GNSS (GPS / Galileo / GLONASS / BeiDou) data processing
· Independently connect NTRIP / VRS server and receive calibration information
without any equipment such as a notebook or smart phone
· Web-based and command-based configuration
· No need to build calibration information server when using calibration
information relay service

· Accurate data construction of road environment
· Establishment of facility DB
· Survey assistant
· Industrial Drone Positioning Module
· Natural / man-made structure displacement monitoring
· Precision agricultural machinery
· Construction equipment

Interface	Performance
· SMA type active antenna input · Input calibration information: LAN, RS232C, USB · Calibration information format: RTCM3.1 (RTK), RTCM2.3 (DGPS), Private data type (RTK) · Operation environment setting User interface: WEB method, command method · Reference station mode correction information output: RS232C, USB · Positioning result output: RS232C, USB (output format: NMEA)	· RTK Accuracy: 0.050m + 1ppm CEP(baseline effective distance: 5 km) · RTK Fix time: 10 to 60 seconds · GNSS TTFF: Cold start: 25-28 seconds, Aided start: 2 seconds

Power	Size and weight
· Rated input: DC 5V 1A · Power input method: POWER jack or USB	· With fixed wing: 117mm X 102mm X 26mm · Without fixed wing: 97mm X 102mm X 26mm · 150g

Operating environment
·-40 ℃ ~ 85℃
